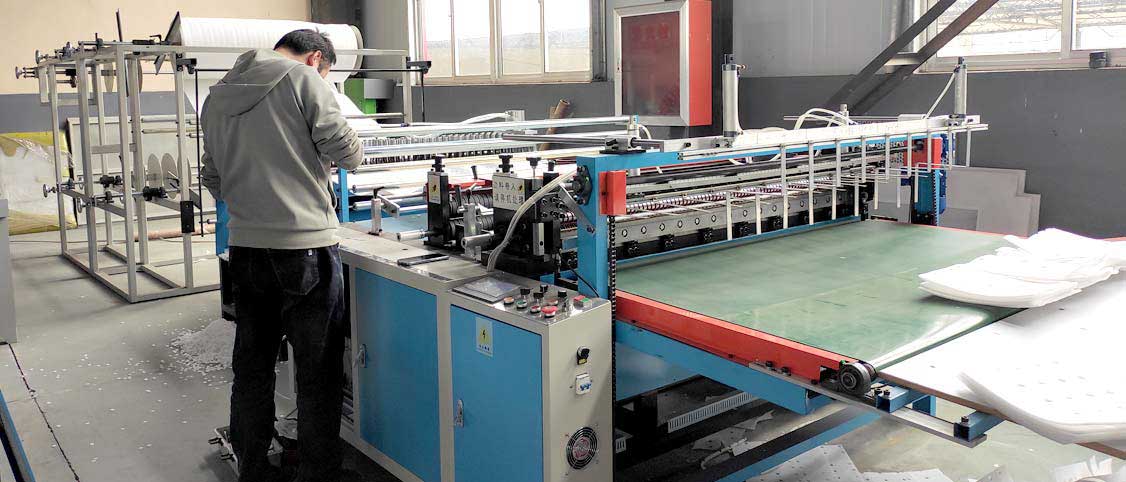

5-Layer EPE Foam Sheet Cutting Machine
5-Layer EPE foam sheet cutting machine can roll up to 5 rolls of EPE foam sheets with a total thickness not exceeding 1.5 cm, and at the same time cut them into various specified sizes of sheets.
The 5-Layer EPE Foam Sheet Cutting Machine is a specialized slitting and cross-cutting system designed for simultaneous precision cutting of multi-layer EPE foam sheets. It combines longitudinal circular blade slitting with transverse horizontal knife cutting, achieving cutting accuracy of ±3mm. The machine handles material widths up to 1600mm, thickness from 0.3–15mm, and operates at speeds up to 1m/s with fully automatic CNC control.
5-Layer EPE Foam Sheet Cutting Machine Technical Data:
Parameter | Standard Configuration | High Configuration |
|---|---|---|
Model | ML-1350 | ML-1680 |
Max. Feed Width | 1300mm | 1600mm |
Cutting Thickness | 3–80mm | 3–80mm |
Left/Right Circular Knife Cutting Width | 25–1300mm | 45–1600mm |
Horizontal Knife Cutting Width | 5mm – infinite | 5mm – infinite |
Cutting Speed | 0–1m/s (adjustable) | 0–1m/s (adjustable) |
Cutting Accuracy | ±0.1mm | ±0.1mm |
Standard Circular Knives | 5 pcs | 8 pcs |
Standard Horizontal Knife | 1 pc | 1 pc |
Total Power | 4.65 kW | 6.65 kW |
Voltage | 380V 3-phase + 1N | 380V 3-phase + 1N |
Machine Dimensions | 2420 × 1430 × 1300mm | 2430 × 1430 × 1200mm |
Worktable Size | 2000 × 950 × 1620mm | 2150 × 950 × 1500mm |
Machine Weight | 805 kg | 1000 kg |
Air Pressure | 0.4–0.8 MPa | 0.4–0.8 MPa |
Source: ML-series standard industry parameters.
FAQ
Q: What does "5-layer" refer to?
A: The term refers to the machine's capability to process and cut multi-layer EPE foam composites — including 5-layer bonded sheets consisting of EPE foam, aluminum foil, PE film, non-woven fabric, and release paper. The machine cuts these composite sheets to precise dimensions without delamination.
Q: How is the cutting accuracy achieved?
A: The machine uses a CNC system with servo-driven circular knives for longitudinal slitting and a precision horizontal knife for transverse cutting. The pressing roller is NC-adjusted, and the cutting speed is digitally controlled, achieving ±0.1mm accuracy.
Q: Can the machine perform both slitting and cross-cutting?
A: Yes. Circular knives perform longitudinal slitting while the horizontal knife executes transverse cutting. This dual-function design enables continuous production of rectangular foam sheets in one pass.
Applications
This machine is ideal for producing 5-layer composite EPE insulation panels, laminated packaging sheets, multi-layer yoga mat blanks, and composite construction insulation boards. It serves EPE deep-processing factories, insulation material manufacturers, and packaging converters.
