horizontal epe foam thickening machine | horizontal foam bonding machine

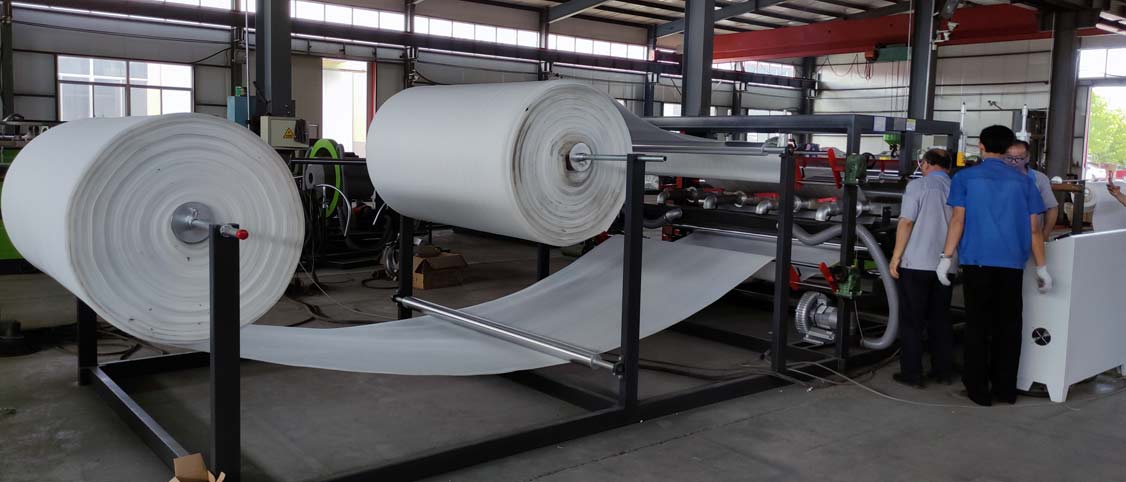

The Horizontal EPE Foam Thickening Machine(horizontal foam bonding machine) is a hot-air bonding laminator that continuously fuses two or more EPE foam layers into a single thicker sheet. It uses Swiss-imported heating elements, reaching working temperatures of 600°C within 1 minute. The horizontal configuration enables high-speed production of 18–60 m/min, with maximum bonding thickness of 5–200mm and maximum bonding width of 2200mm. The machine is also capable of laminating EPE with aluminum foil, paper, and non-woven fabric.
|
Parameter |
Specification |
|---|---|
|
Model Series |
ZH1500 / ZH1700 / ZH2200 |
|
Max. Bonding Width |
1300 / 1500 / 2000mm |
|
Bonding Thickness Range |
5–200mm |
|
Composite Speed |
18–60 m/min |
|
Heating Method |
Hot air (Swiss-imported heater) |
|
Max. Temperature |
600°C (reached within 1 min) |
|
Main Motor Power |
1.5 / 2.2 / 4 kW |
|
Installed Capacity |
23 / 28 / 40 kW |
|
Machine Dimensions |
7.2×1.8×2.0m / 7.5×2.2×2.0m / 8×2.3×2.0m |
|
Machine Weight |
2 / 2.5 / 3 T |
|
Structure Type |
Horizontal |
|
Lamination Method |
Hot air fusion, flameless |
|
Compatible Materials |
EPE + EPE, EPE + aluminum foil, EPE + paper, EPE + non-woven |
Source: epemachine.cn official specifications & industry standards.
FAQ For Horizontal EPE Foam Thickening Machine(horizontal foam bonding machine)
Q: What is the difference between horizontal and vertical thickening machines(horizontal foam bonding machine)?
A: Horizontal machines achieve bonding thickness of 5–200mm at speeds of 18–60 m/min, making them suitable for high-volume production. Vertical machines handle 5–80mm thickness and are more compact. Horizontal machines also allow continuous inline production with automatic unwinding and rewinding.
Q: How strong is the bond?
A: The hot-air fusion process melts the foam surfaces and presses them together, creating a bond as strong as the base material itself. Delamination does not occur under normal use. The flameless process is safer than traditional flame-bonding methods.
Q: What products can be made with this machine?
A: Bonded sheets are used for mattress cores, yoga mats, gym mats, roof insulation, hydropower project concrete insulation, furniture padding, luggage linings, and life-saving equipment.
Applications
Horizontal EPE thickening machines(horizontal foam bonding machine) serve mattress manufacturers, insulation material producers, yoga/exercise mat factories, construction insulation board makers, and packaging material converters. They are particularly valuable for overseas investors establishing EPE deep-processing plants in Africa, South America, and Central Asia.
Why Choose Us
China manufacturer of EPE foam machinery since 2003.EPE foam machine not only have covered all over China, but also have exported to more than 70 countries
