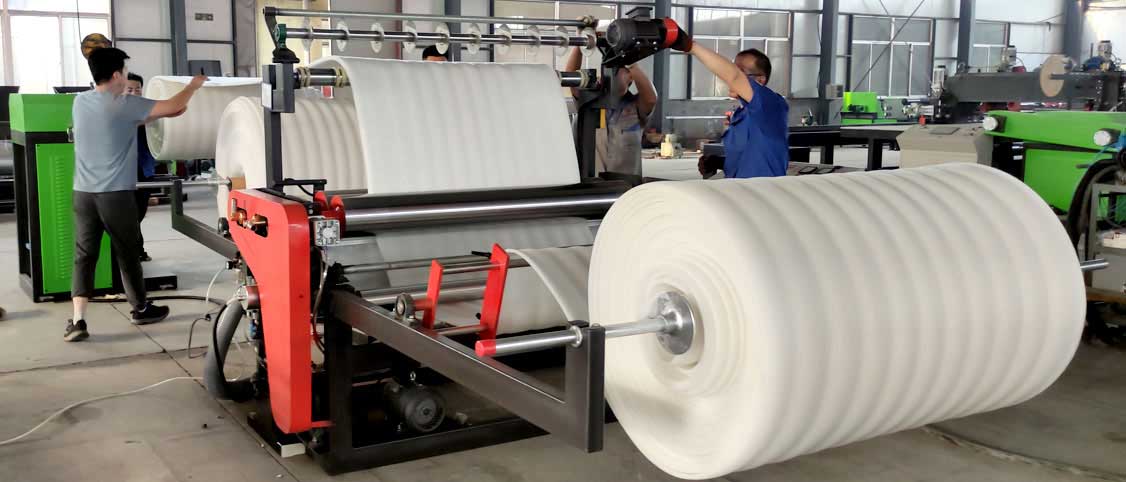

EPE Foam Bonding Machine,EPE Foam Thickening Machine
The Foam Sheet Bonding Machine（epe foam thickening machine） is a deep-processing equipment for bonding and thickening EPE foam sheets.
The EPE foam sheet bonding machine thermally fuses two or more layers of EPE foam sheets together to increase thickness. The JINLIDA bonding machine can achieve a thickness of over 100mm.
(a few flame bonding machine is also used but epe is flammable, the way to use flame is more dangerous, so it is not used much in the bonding of epe products).
PE foam sheet bonding machine,foam plank bonding machine
Main Parameter Of EPE Foam Bonding Machine
maximum composite width | 2100mm |
maximum composite thickness | 100mm |
Heating mode | special ceramic electric heater heating |
Compound speed | 16-- 90m/min |
Main motor power | 2.2kw, frequency control. |
Total power | 85kw |
Structure type | vertical structure of main engine |
winding part | Independent winding machine, 16Nm torque motor drive |
Air supply mode | air pump |
FAQ For Foam Sheet Bonding Machine
Q: How thick can the machine bond sheets?
A: A standard vertical bonding machine can bond up to 10 layers, reaching a total thickness of 120mm. A horizontal bonding machine can reach up to 200mm. A specialized board bonding machine can reach up to 700mm. Custom thicknesses are available upon request. Common base material thickness specifications are 5mm, 10mm, 20mm, and 50mm.
Q: What is the fastest lamination speed of an EPE Foam Bonding Machine or EPE Foam Thickening Machine?
A: 30 to 90 meters per minute. The speed varies depending on the thickness of the EPE foam sheets being laminated — thicker sheets result in slower speeds. It also depends on the operator's parameter settings; higher machine temperature generally allows for faster speeds. In short, the lamination speed is related to the thickness of the EPE foam sheets and the skill of the operator.
Q: Is the bond strong? Will it delaminate?
A: Using thermal fusion bonding technology, the bond strength is close to that of the base material itself. Delamination does not occur under normal use. The bonded sheet maintains good integrity.

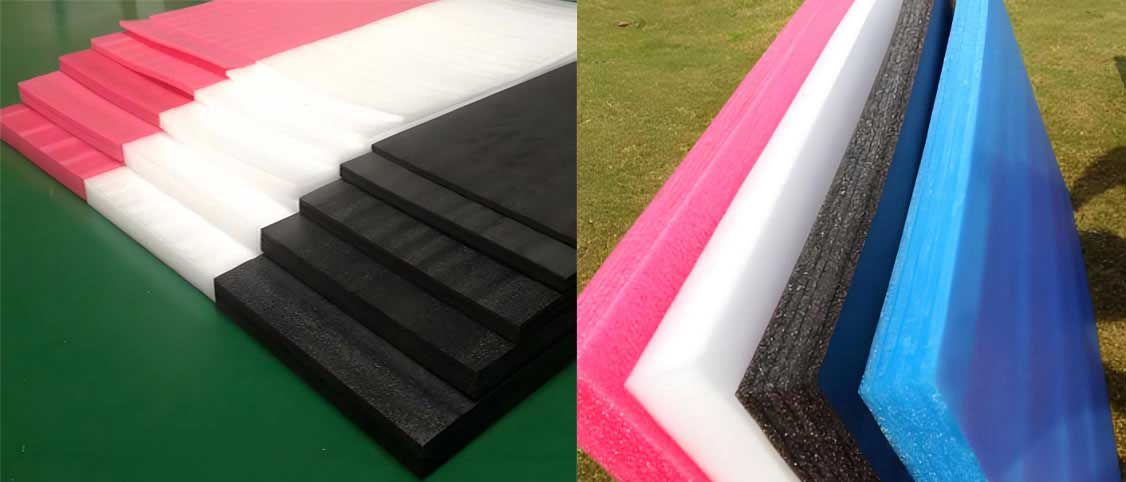

Q: What are the bonded sheets used for?
A: They are commonly used for products requiring a certain thickness, such as yoga mats, gym mats, mattress toppers, seat cushions, and packaging pads.
Why Choose Us
China manufacturer of EPE foam machinery since 2003.EPE foam machine not only have covered all over China, but also have exported to more than 70 countries
