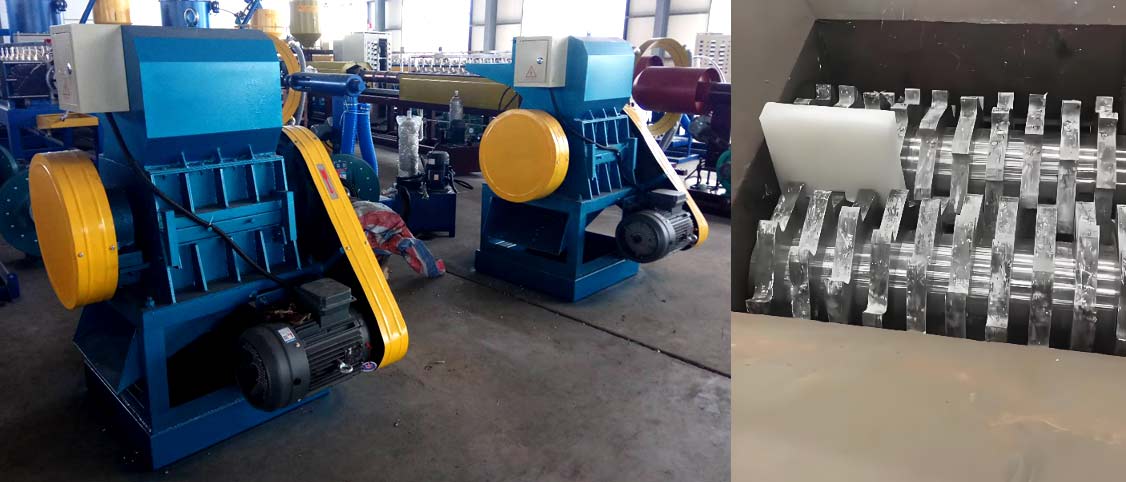

Foam Sheet Crusher/Foam Shredding Machine/Crusher Machine
The Foam Sheet Crusher (also called Foam Shredding Machine) is a recycling equipment designed for crushing EPE, XPE, PE, and EVA foam waste — including edge trim, defective products, and post-consumer foam — into reusable particles. The crushed material can be re-pelletized for reuse in foam production, achieving a waste recycling rate of up to 95%. The machine features heavy-duty rotary blades and adjustable output particle size.
Regarding the head waste generated during the production process of the EPE foam sheet extrusion machine. Especially the waste without butane gas extruded from the newly started EPE foam sheet machine. When directly put into the granulator, due to the lack of foaming, the waste is relatively hard and easily choked on the granulator. Therefore, it is necessary to use a crusher to crush the waste from the machine head before granulating
| Plastic Type | PVC, PET, ABS, PP/PE, PE, PP, PC, PMMA, PA, PS |
| Machine Type | Plastic Crusher |
| Max.Production Capacity (kg/h) | 2000 |
| Production Capacity (kg/h) | 200kg/h - 2000kg/h |
| Use | Plastic Crusher |
| Voltage | Customized |
| Dimension(L*W*H) | Customized |
| Power (kW) | 22 |
| Weight (T) | 1 |
| Warranty | 1.5 years |
| Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Farms, Printing Shops, Advertising Company |
| Key Selling Points | High Productivity |
| Showroom Location | Peru, Mexico, Argentina, Romania, South Africa, Nigeria |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Warranty of core components | 1.5 years |
| Core Components | Bearing, Motor, Pump, Gear, PLC, Other, Pressure vessel, Gearbox |
| Application | Film,bags,rigid material |
| Color | Client's Requirements |
| Crushing material |
PE PP PVC ABS PET PC
|
| Key Selling Points |
Automatic
|
FAQ For Foam Sheet Crusher/Foam Shredding Machine/Crusher Machine
Q: What types of foam can be crushed?
A: The machine processes EPE, XPE, IXPE, PE, EVA, and other soft foam materials in sheet, block, or scrap form. It is not suitable for hard plastics, rubber, or metal materials.
Q: How is the output particle size controlled?
A: By changing the screen mesh size, output particles can be adjusted from 5mm to 50mm. Smaller particles are suitable for direct re-pelletizing; larger flakes can be used for filler material.
Q: What is the recycling economics?
A: Crushed foam can be re-pelletized and blended with virgin material at 10–30% ratio in EPE foam production, reducing raw material costs significantly. A typical EPE foam factory generates 5–10% edge trim waste, which can be 100% recycled through this machine.
Applications
Foam shredders are essential equipment for EPE foam factories, packaging material recyclers, mattress manufacturers, and waste management facilities. They enable closed-loop recycling systems that reduce raw material costs and environmental impact.
Why Choose Us
China manufacturer of EPE foam machinery since 2003.EPE foam machine not only have covered all over China, but also have exported to more than 70 countries
