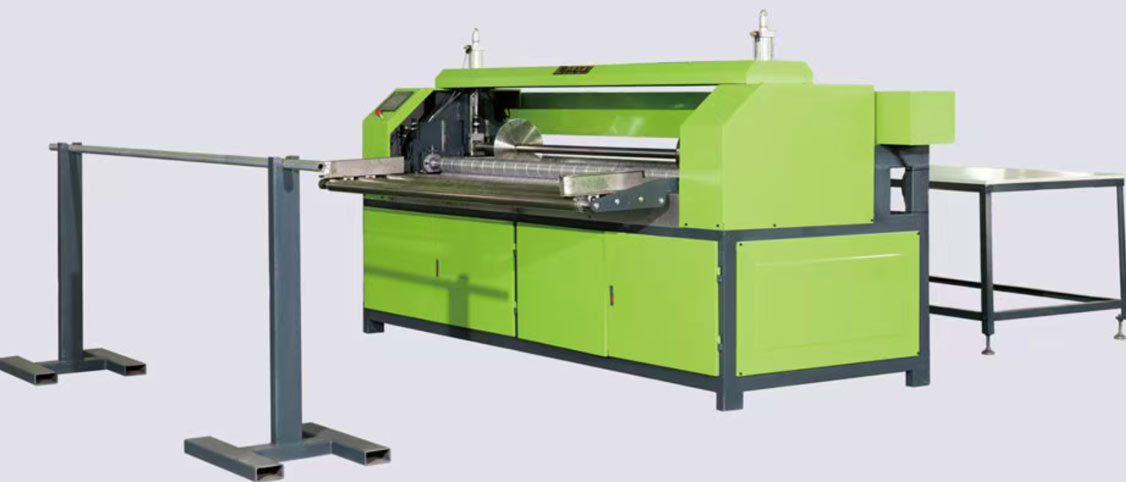

EPE Foam Cutting Machine
The EPE Foam Cutting Machine is a microcomputer controlled industrial cutter designed for precision cutting of EPE, XPE, PE, EVA, EPP, and IXPE foam sheets, rolls, and planks. It uses circular blades and horizontal knives to achieve cutting tolerances of ±1mm. The machine features PLC automatic control, automatic feeding, and requires only 1 operator. Typical cutting width ranges from 60–2100mm, cutting thickness from 2–100mm, and cutting speed up to 60m/min.
Parameter | Specification |
|---|---|
Model | CQ-1500 /CQ-2200 |
Cutting Width | 60–1400mm (CQ-1500) / 25–2100mm (CQ-2200 ) |
Cutting Thickness | 2–100mm |
Cutting Length | 20mm – unlimited |
Cutting Speed | 0–1m/s (adjustable) |
Cutting Accuracy | ±1mm |
Number of Vertical Blades | 8 pcs (expandable) |
Number of Horizontal Blades | 1 pc |
Drive System | PLC + Servo motors (6 servo motors typical) |
Operator Required | 1 person |
Machine Power | 4.65–6.65 kW |
Voltage | 380V 3-phase |
Machine Dimensions | 2760 × 1250 × 1380mm (typical) |
Machine Weight | 805–1000 kg |
FAQ For EPE Foam Cutting Machine
Q: What materials can this machine cut?
A: The EPE Foam Cutting Machine can cut EPE, XPE, XLPE, IXPE, PE, EVA, EPP, EPS, and other foam materials in sheet, roll, or plank form. It handles both thin films (2mm) and thick planks (up to 100mm).
Q: What is the difference between slitting and cutting?
A: Slitting refers to longitudinal cutting (cutting the length) using circular rotating knives. Cutting (cross-cutting) refers to transverse cutting (cutting the width) using horizontal straight knives. This machine performs both functions in one integrated system.
Q: How precise is the cutting?
A: The machine achieves cutting tolerance of ±1mm, ensured by 6 servo motors controlling vertical and horizontal cutting axes. Blade positions are digitally set via PLC touchscreen.
Q: Is the machine easy to operate?
A: Yes. The operator only needs to input material thickness and target cutting length on the PLC touchscreen, then press start. The machine performs automatic feeding, cutting, and stacking. One untrained worker can operate it after 2 hours of training.
Applications
EPE foam cutting machines are essential for producing packaging inserts, foam trays, protective corners, yoga mat blanks, mattress components, and automotive cushioning parts. They serve the electronics packaging, furniture, construction insulation, and sporting goods industries.
Why Choose Us
China manufacturer of EPE foam machinery since 2003.EPE foam machine not only have covered all over China, but also have exported to more than 70 countries
