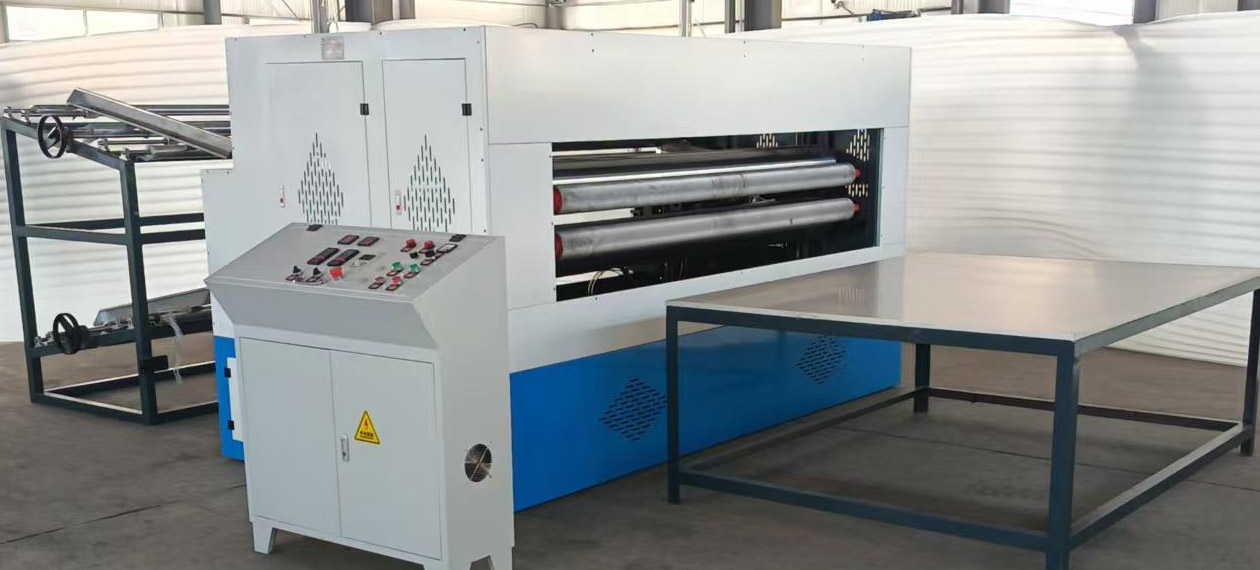

EPE foam board thickening machine
The EPE Foam Board Thickening Machine is a heavy-duty horizontal laminator designed for producing extra-thick EPE foam boards with maximum thickness up to 700mm. It uses two dedicated electric hot-air heaters (16kW per head) to melt and bond multiple foam layers. The machine features a maximum composite width of 2100mm, composite speed of 10–20 m/min, and installed capacity of 45kW. It is the primary equipment for manufacturing EPE mattress cores and thick insulation boards.
Technical Parameters
Parameter | Specification |
|---|---|
Max. Composite Width | 2100mm |
Max. Composite Thickness | 700mm |
Composite Speed | 10–20 m/min |
Structural Type | Horizontal |
Feeding Method | Traction automatic feeding with auto-alignment (<2cm error) |
Heating Method | 2 × electric hot-air heaters, 16kW per head |
Air Supply | 2.2kW air pump |
Main Motor Power | 2.2kW (variable frequency) |
Roller Control | Electrically adjustable squeeze force |
Hot Box Movement | Cylinder linear guide transmission |
Installed Capacity | 45 kW |
Machine Dimensions | 3600 × 3100 × 2200mm |
FAQ For EPE foam board thickening machine
Q: What is the maximum thickness this machine can produce?
A: The EPE Foam Board Thickening Machine can bond multiple layers to achieve a total thickness of up to 700mm. This is significantly thicker than standard horizontal thickening machines (max 200mm) or vertical machines (max 120mm).
Q: How does the automatic alignment work?
A: The machine uses traction automatic feeding with upper and lower sheet auto-alignment. The joint error is controlled within 2cm, ensuring precise layer registration during the bonding process.
Q: What products are made with this machine?
A: The primary products are EPE mattress cores, thick insulation boards for construction, life-saving equipment浮力材料, and heavy-duty packaging cushions. These thick bonded boards serve furniture manufacturers, construction companies, and specialty foam fabricators.
Applications
EPE foam board thickening machines are essential for mattress factories, furniture cushioning manufacturers, construction insulation board producers, and marine floatation equipment makers. They enable the production of extra-thick EPE products that cannot be achieved through standard single-layer extrusion.
