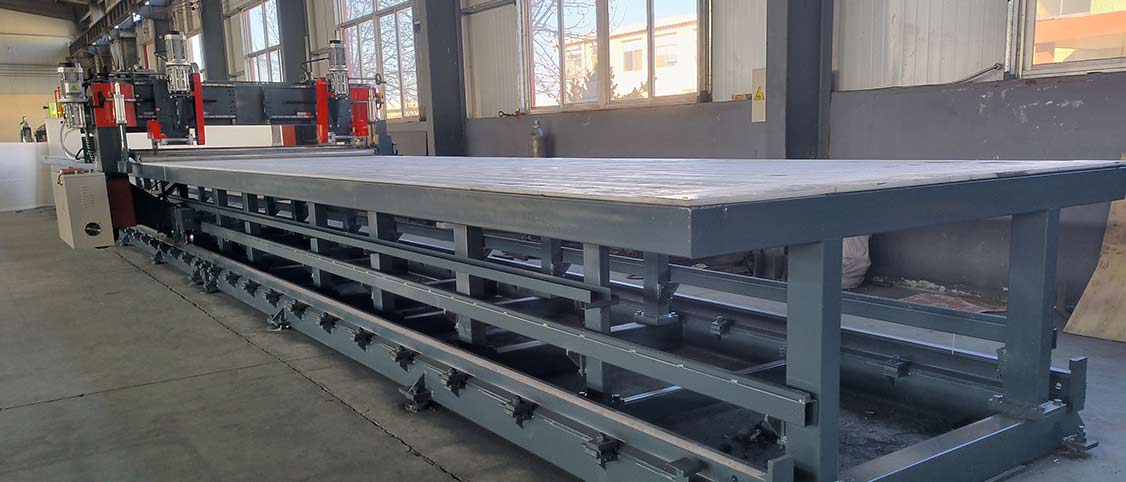

sports mat production machine (sports mats in rolls, gymnastics mats in rolls)
The sports mat production machine (sports mats in rolls, gymnastics mats in rolls, flexible XPE mats in rolls) is used in conjunction with a cutting and sewing machine: the XPE sports mat is trimmed along the edges, grooves are cut, the Velcro fasteners are heat-sealed, and then cut and sewn to produce rolled mats adapted to various requirements.
Product characteristics of the sports mat production machine (sports mats in rolls, gymnastics mats in rolls, flexible XPE mats in rolls): light weight, easy to roll and store, easy to install and dismantle, easy to move and transport, multifunctional, and suitable for professional use.
Applications of the Sports Mat Making Machine: Martial arts, Sanda, Judo, Wrestling, Combat Sports, Taekwondo, Kickboxing, Muay Thai, Yoga, Fitness, Dance, Cheerleading, Brazilian Jiu-Jitsu, Karate, Army Mats, Treadmills, Children's Gymnastics, Freestyle Gymnastics, Home Mats, Sleeping Mats, Camping Mats, Post Pads, Wall Protectors, Gym Flooring, Mats for Kindergartens and Early Learning Centers, Floor Mats for Children's Rooms...
Main Technical Parameters of the Sports Mat Making Machine (Sports Mats in Rolls, Gymnastics Mats in Rolls, Flexible XPE Mats in Rolls):
Cutting Width: 1000–2000 mm
Working Table Length: 18 m, Height: 1 m Divided into three sections.
Two circular edge trimming blades, adjustable vertically and horizontally. Vertical adjustment range: 35 mm, horizontal adjustment range: 550 mm.
Blade motor power: 1.5 kW.
Includes a Velcro attachment device. A flat-top stainless steel chain is used to hold the Velcro in place, heated with a hair dryer. The device can be raised, lowered, and moved horizontally.
Travel motor power: 2.2 kW.
Pressure rollers are installed before and after the blades to prevent the mat from lifting.
Guides are installed under the work table, on one side of the gantry frame.
Installed power: 7.2 kW.
Overall dimensions: length × width × height = 18,000 × 3,000 × 2,200 mm.
