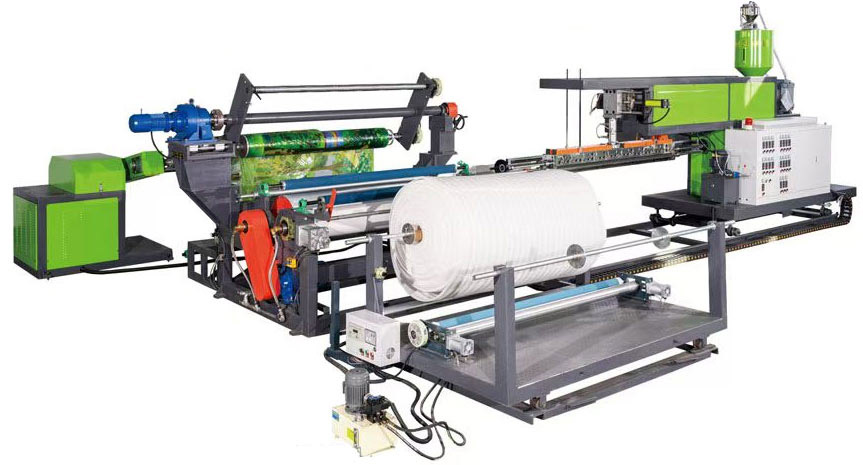

Baby Blanket Extrusion Laminating Machine/Extrusion Coating Machine
The Baby Blanket Extrusion Laminating Machine/Extrusion Coating Machine is used for laminating EPE foam sheets with materials such as PE, OPP color film, aluminized film, kraft paper, non-woven fabric, flannel, woven cloth, etc., via melt extrusion coating. It is primarily used to produce baby crawling mats, moisture-proof mats, greenhouse quilts, and similar products. Jinlida Machinery offers machines with widths ranging from 1000 mm to 4200 mm.
EPE baby blanket adopts the innocuous and unpoisonous EPE(PE foam film) as the intermediate material. The front side is laminated by CPP or PE color film, which is using inner printing technology, the users will not touch the hazardous substance directly.
baby mat,foam play mat machine,foam play mat making machine,baby floor mat, activity mat machine
The main technical parameters of Baby Blanket Extrusion Laminating Machine/Extrusion Coating Machine:
| Model | Screw（MM） | MouldWidth（MM） | ProductWidth（MM） | Speed（M/Min） | Power（KW） | Size（M） |
| 1600 | 75 | 1600 | 1450mm | 30～110 | 50 | 10x8x3.5 |
| 1800 | 75 | 1800 | 1650mm | 30～110 | 80 | 10x8x3.5 |
| 2200 | 90/110 | 2200 | 2050mm | 30～110 | 110/120 | 11.5x9x3.5 |
| 3200 | 110/120 | 3200 | 3050mm | 30～110 | 150 | 12x10x3.5 |
FAQ
Q: What width of baby play mat can the extrusion coating machine(Extrusion Laminating Machine) produce?
A: Standard width is 1000–2200 mm. Special widths can be customized. A common width for baby crawling mats is 2000 mm.
Q: What is the difference between an extrusion coating machine and a film laminating machine?
A: The extrusion coating machine(Extrusion Laminating Machine) uses a melt casting process, applying molten plastic directly onto the substrate surface. This results in high bonding strength, fast speed, and roller embossing with strong three-dimensional effect and clear patterns. It is suitable for large-scale production. A film laminating machine presses pre-made film onto the substrate using heat and pressure. Its disadvantage is that the roller embossing pattern lacks the three-dimensional clarity of the extrusion coating method. It is better suited for small-batch, multi-variety production.
Q: How many operators are needed for the extrusion coating machine(Extrusion Laminating Machine)?
A: Normal operation requires 2–3 people: two for unwinding and rewinding, and one for quality inspection and packaging.
Why Choose Us
China manufacturer of EPE foam machinery since 2003.EPE foam machine not only have covered all over China, but also have exported to more than 70 countries
