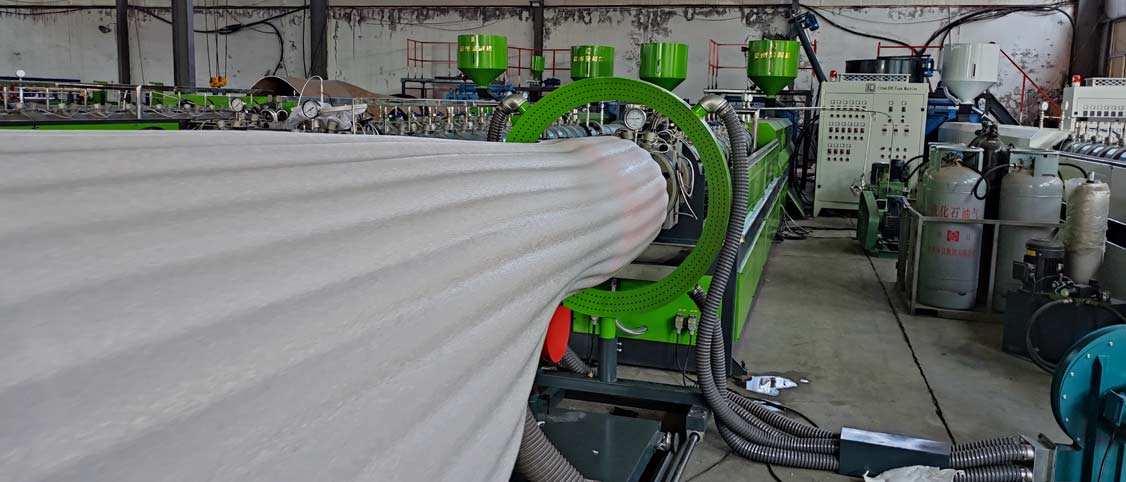

Non-crosslinked polyethylene foam machine / Non-crosslinked PE foam extruder (EPE, NPE foam machine)
Founded in 2003, the company specializes in manufacturing EPE foam sheet equipment. Screw diameter: 75–300 mm, output: 20–1000 kg/h, foaming ratio: 20–64 times, sheet width: 850–4000 mm, price: RMB 150,000–800,000. The equipment features automatic PLC control, enabling automatic feeding, winding and cutting. Achievable density: as low as 13 kg/m³.
| Model | Screw dia (mm) | width (mm) | Thickness(mm) | Total power (KW) | Output (kg/h) | Foaming times | Dimension(m) |
| EFP-75 | 75 | 850~1600 | 0.2-3 | 55 | 25-50 | 9-64 | 20*4*3 |
| EFP-90 | 90 | 850~2000 | 0.2-4 | 75 | 60-90 | 22*4*3 | |
| EFP-105 | 105 | 850~2000 | 0.3-6.5 | 95 | 80-120 | 25*4*3 | |
| EFP-120 | 120 | 850~2000 | 0.5-8 | 115 | 120-180 | 27*4*3 | |
| EFP-135 | 135 | 850~2000 | 1-10 | 150 | 170-220 | 35*4*3 | |
| EFP-150 | 150 | 850~3000 | 2-12 | 220 | 250-300 | 38*7*3 | |
| EFP-170 | 170 | 850~3000 | 2-15 | 320 | 100-450 | 40*7*3 | |
| EFP-180 | 180 | 850~3000 | 3-18 | 330 | 300-500 | 41*7*3 | |
| EFP-200 | 200 | 850~3000 | 3-20 | 400 | 350-650 | 42*7*3 | |
| EFP-220 | 220 | 850~3000 | 3-22 | 450 | 400-700 | 43*7*3 | |
| EFP-250 | 250 | 850~3000 | 3-25 | 500 | 450-800 | 46*7*3 | |
| EFP-280 | 280 | 850~3000 | 5-27 | 560 | 500-900 | 49*7*3 | |
| EFP-300 | 300 | 850~3000 | 5-30 | 600 | 550-1000 | 50*7*3 |
FAQ
Q: How much does a Non-crosslinked polyethylene foam machine / Non-crosslinked PE foam extruder (EPE, NPE foam machine) cost?
A: The price ranges from $30,000.00 to $142,858.00 USD, depending on screw diameter. Models with screw diameter 75–120 (output 75–120 kg/h) are approximately $30,000.00–$50,858.00; models 135–180 cost about $57,680.00–$89,268.00; models 200–300 cost about $109,268.00–$208,280.00. The final price varies according to the control system configuration, automatic winding station and other accessories. Freight is not included.
Q: How do I choose the right model of Non-crosslinked polyethylene foam machine / Non-crosslinked PE foam extruder (EPE, NPE foam machine)?
A: Select based on desired daily output and sheet thickness. For output less than 1.5 t/day, choose model 90; for 1.5–3 t/day, model 120; for 3–6 t/day, model 150; for 6–10 t/day, model 180; for over 10 t/day, choose model 200 or above. Regarding EPE foam sheet thickness range: for thin sheets of 0.5 mm, use models 75–105; for thickness 0.3–5 mm, use models 105–120; for 2–5 mm, use models 150–180–200; for 3–10 mm (industrial packaging applications), use models 180–300. Also consider sheet width and expansion requirements.
Q: What special features does the Non-crosslinked polyethylene foam machine / Non-crosslinked PE foam extruder (EPE, NPE foam machine) have?
A: High foaming ratio, low density (sheet can reach as low as 13 kg/m³). Equipped with hydraulic automatic winding device and online sheet thickness measuring system. The company provides a fully automated control system with automatic winding and cutting stations, and offers installation and commissioning services.
Applications
Non-crosslinked polyethylene foam machine / Non-crosslinked PE foam extruder (EPE, NPE foam machine) – EPE foam sheets are widely used in: baby play mats, water floating boards, packaging, building insulation materials, automotive interior parts, agricultural films, cushioning packaging for machinery, electronic product packaging, etc. Main customers include product manufacturers, packaging companies, and logistics firms.
Why Choose Us
China manufacturer of EPE foam machinery since 2003.EPE foam machine not only have covered all over China, but also have exported to more than 70 countries
